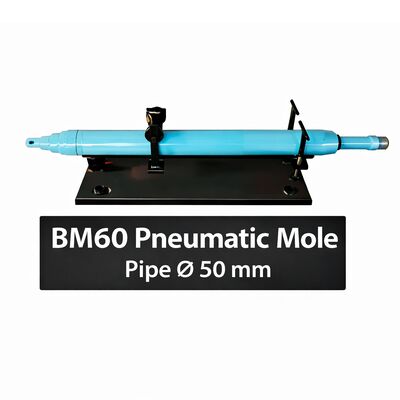

BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure

BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure
BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure
BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure

Großes Bild :  BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure

Produktdetails:
Herkunftsort: China
Markenname: Longway
Zertifizierung: ISO9001
Modellnummer: BM60
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandelbar
Verpackung Informationen: Nach Bedürfnissen der Kunden
Lieferzeit: 20-30 Werktage, die entsprechend verschiedenen Produkten und Inventar justiert werden
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 20-30 Werktage, die entsprechend verschiedenen Produkten und Inventar justiert werden
Kontakt

BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure

Beschreibung
Hervorheben:

50 mm Pipe Diameter Pneumatic Impact Mole

,

2.2-3.3 Hz Impact Frequency Impact Mole

,

0.4-0.8 MPa Air Pressure Trenchless Boring Tool

BM60 Pneumatic Impact Mole for Trenchless Pipe Ramming
The BM60 Pneumatic Impact Mole is a compact and efficient trenchless boring tool designed for underground pipe installation without surface excavation. Powered by compressed air, it delivers stable low-frequency impact energy to penetrate soil layers quickly and accurately, making it ideal for short-distance pipe ramming projects in urban and municipal construction.

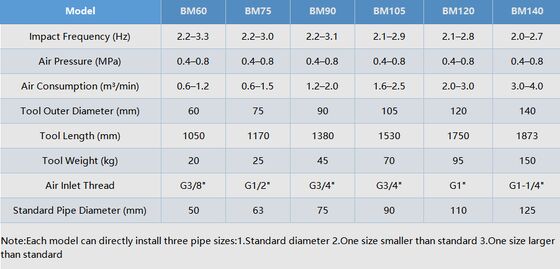

Product Series Comparison
Model BM60 BM75 BM90 BM105 BM120 BM140
Impact Frequency (Hz) 2.2-3.3 2.2-3.0 2.2-3.1 2.1-2.9 2.1-2.8 2.0-2.7
Air Pressure (MPa) 0.4-0.8 0.4-0.8 0.4-0.8 0.4-0.8 0.4-0.8 0.4-0.8
Air Consumption (m³/min) 0.6-1.2 0.6-1.5 1.2-2.0 1.6-2.5 2.0-3.0 3.0-4.0
Tool Outer Diameter (mm) 60 75 90 105 120 140
Tool Length (mm) 1050 1170 1380 1530 1750 1873
Tool Weight (kg) 20 25 45 70 95 150
Air Inlet Thread G3/8" G1/2" G3/4" G3/4" G1" G1-1/4"
Standard Pipe Diameter (mm) 50 63 75 90 110 125
Each model can directly install three pipe sizes: 1. Standard diameter 2. One size smaller than standard 3. One size larger than standard
Key Applications
  • Trenchless pipe installation for water, gas, and communication lines
  • Road, sidewalk, and railway crossings
  • Municipal utility construction
  • Small-diameter underground boring projects
  • Short-distance pipe ramming (≤ 20 m)
Suitable Soil Conditions
  • Clay soil
  • Silty clay
  • Sandy soil with gravel
  • Mixed fill ground
Not recommended for extremely hard rock or excessively loose formations.
Main Features
  • Low-pressure, low-frequency pneumatic impact system
  • Simple structure, easy operation, and low maintenance
  • High penetration efficiency with minimal ground disturbance
  • Compact size, ideal for confined working spaces
  • Forward and reverse (retracting) function for obstacle handling
  • Cost-effective solution for small to medium trenchless projects
Technical Specifications - BM60
Model BM60
Impact Frequency 2.2 - 3.3 Hz
Air Pressure 0.4 - 0.8 MPa
Air Consumption 0.6 - 1.2 m³/min
Tool Outer Diameter 60 mm
Tool Length 1050 mm
Tool Weight 20 kg
Air Inlet Thread G3/8"
Standard Pipe Diameter 50 mm
Each BM60 impact mole can directly install three pipe sizes:
  • Standard pipe diameter (50 mm)
  • One size smaller than standard
  • One size larger than standard

Working Principle
The BM60 Pneumatic Impact Mole operates using compressed air to drive an internal piston, which repeatedly strikes the anvil inside the tool body. The generated impact force propels the mole forward through the soil, forming a straight borehole.
Once the mole exits at the receiving pit, pipes can be installed by:
  • Pulling pipes through the borehole using a steel wire rope, or
  • Installing pipes simultaneously using a pipe adapter during boring
BM60 Pneumatic Impact Mole for 50 mm Pipe Diameter with 2.2-3.3 Hz Impact Frequency and 0.4-0.8 MPa Air Pressure 0
Standard Supply Scope
  • Pneumatic Impact Mole Main Body × 1
  • High-pressure air hoses (8 m + 20 m) × 2
  • Lubricator × 1
  • Hook spanners × 2
  • U-shaped shackle × 1
  • Special pneumatic lubricating oil × 2 L
Optional Accessories
  • Launching frame
  • Pipe adapter (for PE pipes)
  • Winch for pipe pulling
  • Customized accessories based on pipe diameter and wall thickness
Operation Advantages
  • No open trench required
  • Reduced labor and restoration costs
  • Minimal impact on traffic and surroundings
  • Fast setup and easy relocation
Safety & Maintenance
  • Ensure underground utilities are identified before operation
  • Maintain proper lubrication using specified oil only
  • Never disassemble the tool under pressure
  • Clean and oil the tool after each operation to prevent corrosion
Why Choose BM60 Pneumatic Impact Mole?
  • Proven BM series design with reliable performance
  • Optimized for Ø50 mm trenchless pipe ramming
  • Factory-direct supply with technical support
  • Suitable for contractors, rental companies, and municipal projects
Contact Us
For pricing, technical consultation, or customization, please contact us directly.
OEM & ODM services are available.
LONGWAY CONSTRUCTION MACHINERY Co., Ltd.
Contact Person: Leo Wu
Tel: +86-13260889238
Email: leo@baiweidrill.com.cn
