Produktdetails:
Herkunftsort: CHINA
Markenname: Longway
Modellnummer: KX50/80
Zahlung und Versand AGB:
Min Bestellmenge: 1
Verpackung Informationen: Karton
Lieferzeit: 5-8 Tage
Zahlungsbedingungen: T/t

Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool

Beschreibung
Last`: 500 Kn Maximale Rückziehgeschwindigkeit: 1.5m/min
Min. Rückzuggeschwindigkeit: 0.8m/min Leistung: 4KW
Größe des Wirts: 480*400*400 mm Hydraulikstation Größe: 800*550*500 mm
Wirtgewicht: 120 kg Hydraulikstationgewicht: 140 kg
Anpassungsdurchmesser des Schachtes: 420 mm Brunnungsabmessungen erfordern: 800 mm
Stabspezifikation: 60*500 mm

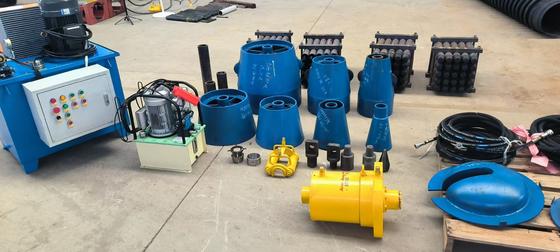

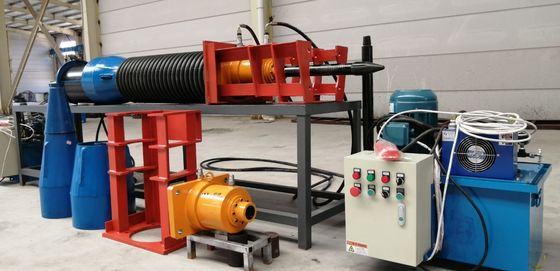

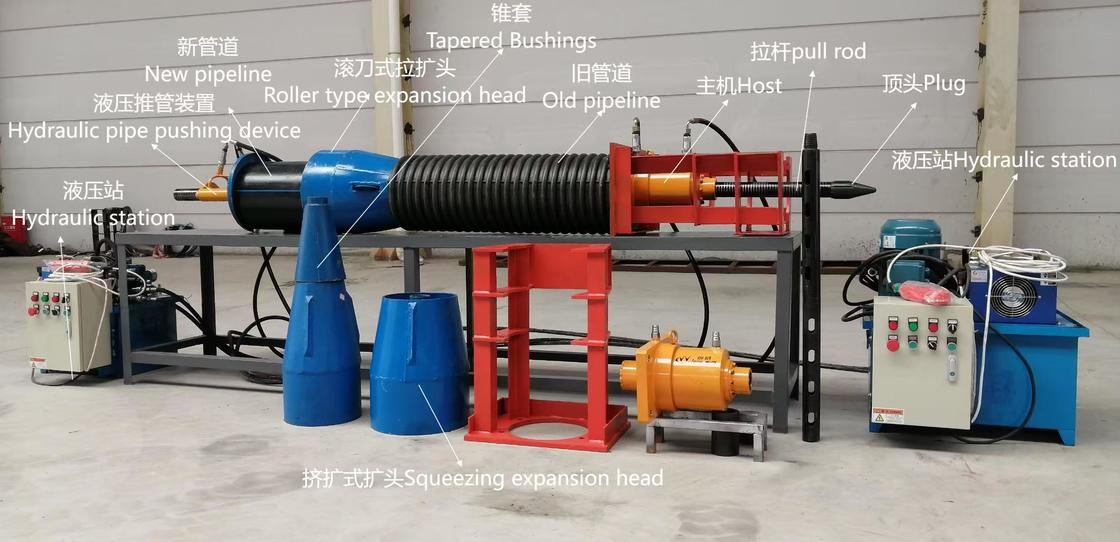

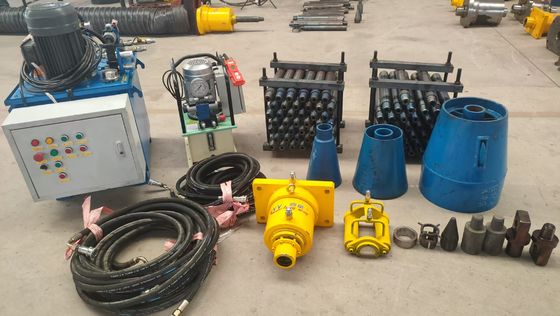

1. The pipeline in-situ replacement system independently developed by our company is mainly composed of the main unit, pull rods, cone sleeves, pulling-expanding heads, hydraulic pipe pushing devices, hydraulic stations (in two sizes), and top heads, and is suitable for the renovation construction of old urban pipelines.

2. Main component descriptions of the pipe bursting machine

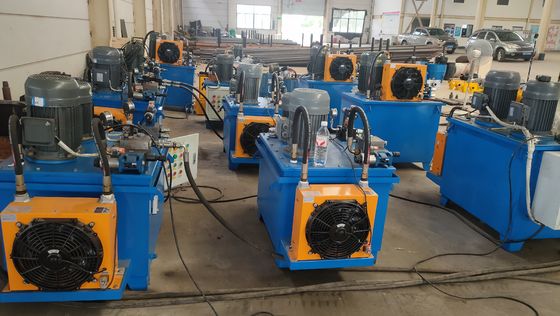

2.1 Hydraulic station: Equipped with automatic direction change and leakage self-protection functions. The electromagnetic valves support manual/automatic switching. Operators can operate in the well by holding a remote control.

2.2 Threaded pull rods: Adopting an insert-free design, it can achieve automatic retraction of the rods, effectively reducing the labor intensity of workers and improving construction efficiency.

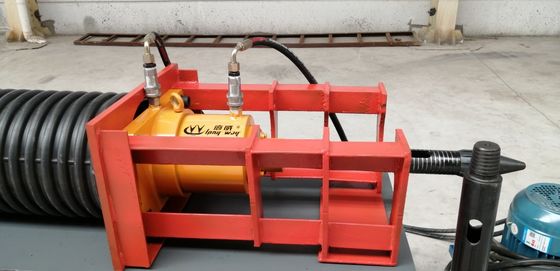

2.3 Main unit: Compact structure, light weight, convenient for well entry operation; unique threaded pull rod mode, can achieve automatic retraction of the rods without the need for inserts.

2.4 Pulling-expanding heads: The blades are of rolling type and have undergone quenching treatment, which can effectively avoid the accumulation of debris in the old pipeline and have a long service life.

2.5 Hydraulic pipe pushing device: Combined with the slips and cone sleeves, it can lock the new pipeline at any position.

Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool 0Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool 1
